Description

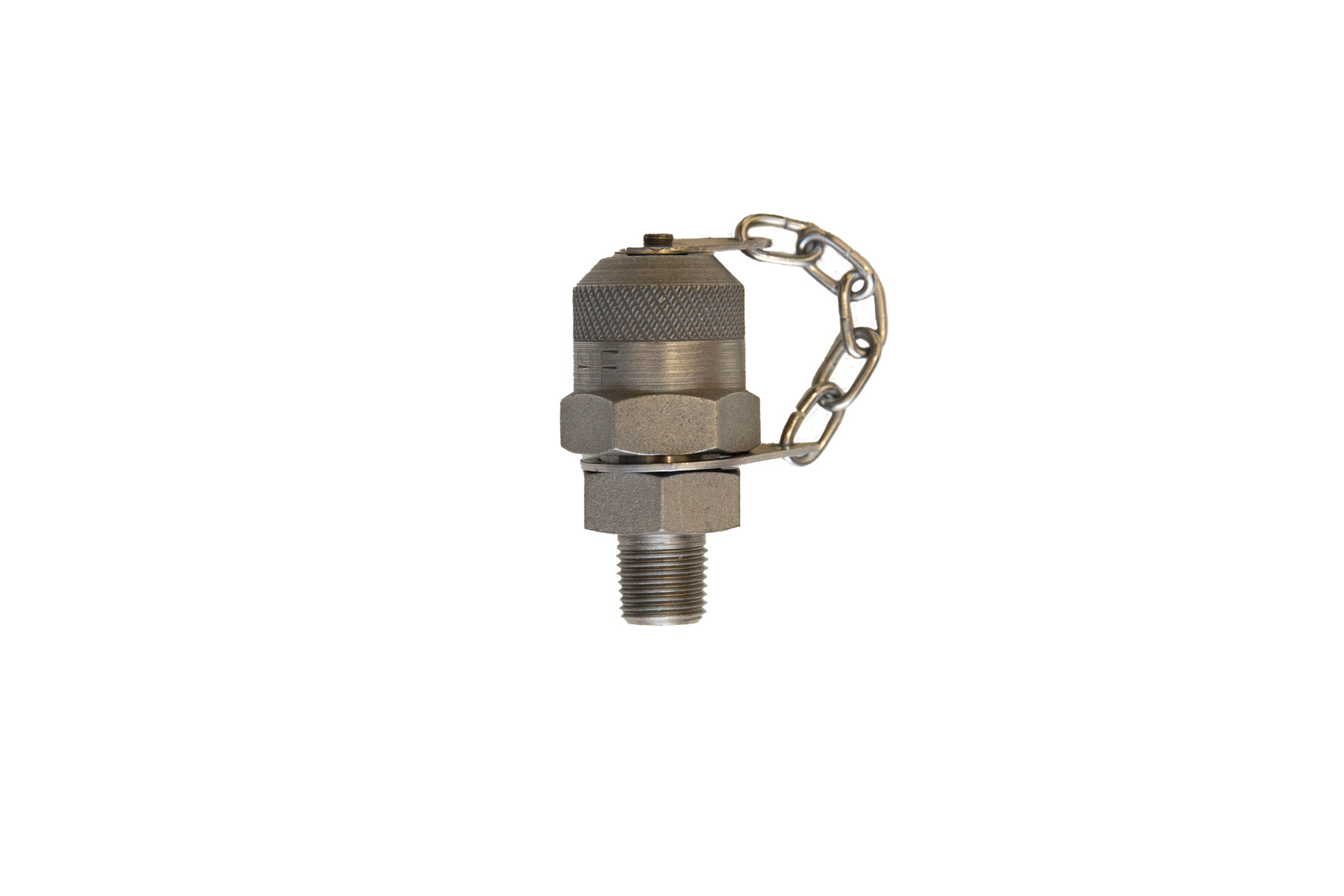

1620 (M16 x 2mm) Pressure Test Point 1/8 NPT
1620 test points, also known as Test 20, have a unique M16x2 threaded test connection which is the most common test point used today. It is available in a wide variety of connection threads, body materials & sealing options.
Hi quality test fittings
Maximum operating pressure: 630 bar
They can be coupled under pressure up to 400 bar
All couplings come with a protective cap
Couplings come in a range of different treads Metric/BSPT/BSPP/NPT/UNO
Couplings are widely used on:
- Hitachi
- Caterpillar
- Komatsu
- Leebaherr
Perfect for use in pneumatic/hydraulic instruments to allow remote mounting of Instrumentation or to create a permanent test/calibration point.
Advantages:
- Coupling at system pressure level
- Simple connection to measuring, control & switching devices
- Leakproof connection before ball valve is open
- Self-locking metal guard cap
